Select Tool
  • 23 May 2023
  • 1 Minute to read
  • Dark
    Light
  • PDF

Select Tool

  • Dark
    Light
  • PDF

Article Summary

The Select Tool is used to select single or multiple items on a Plan to relocated, Duplicate, Flip, Rotate, Re-order, Transfer to other Measurements or Delete.

Group Select

Group Select allows an area selection encompassing all visible Counts, Lengths, Areas and annotations to relocate or perform an Action on. Hidden Measurements and/or Stages will not be included in Group Select.

  1. Press ESC to enter Select Mode
  2. Hold Shift and click and release with the mouse, screen will turn grey
    Move the mouse to the opposite corner of the area to Select
  3. Click and release in the opposite corner

Optional functions:

  • Click, hold, and drag to the desired position
  • Perform an Action
  • To Unselect an incorrect item, hold CTRL / Command ⌘ and click the item
  1. Click Save
    To Cancel the changes click Cancel

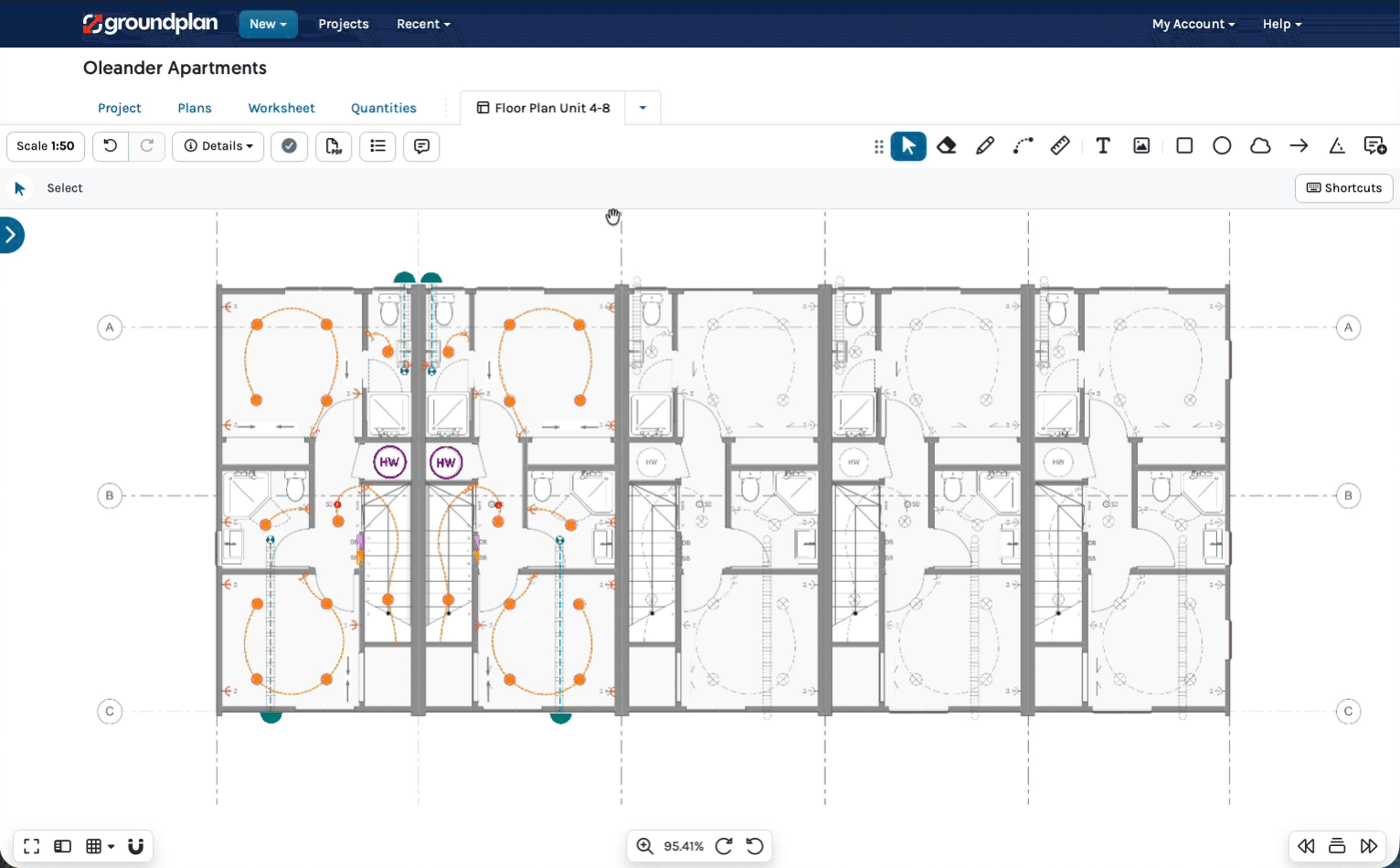

Group Select1

Click Select

Click Select allows the selection of multiple individual items to be relocated or to perform an Action.
This selection can include Counts, Lengths, Areas annotations.

  1. Press ESC to enter Select Mode
    Zoom in on the items to Select
  2. Click to Select an item
  3. Hold CTRL / Command⌘ and click on additional items

Optional functions:

  • Click, hold, and drag to the desired position
  • Perform an Action
  • To Unselect an incorrect item, hold CTRL / Command ⌘ and click the item
  1. Click Save
    To Cancel the changes click Cancel

Click Select
